Steering control system

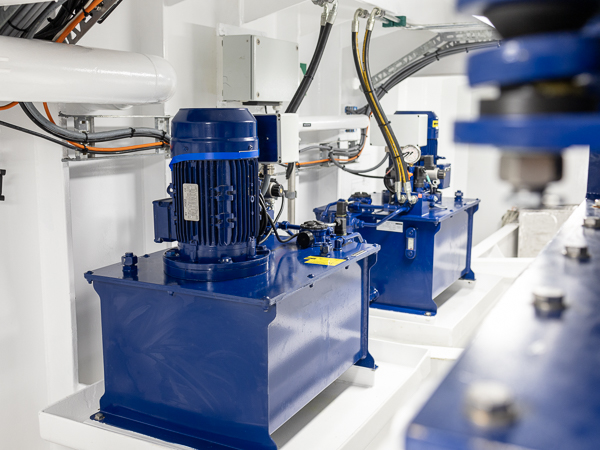

Rudder indicator with control lever on console. Control panel with AS SCAN display and emergency stop. Hydraulic power units installed in the engine room.

A control system known for performance and reliability

What is a steering control unit?

A steering control unit is used to convey a signal of ordered rudder angle from the bridge and activates the steering gear to move the rudder to the desired angle.



Dual control cabinets with AS SCAN display and emergency stop.

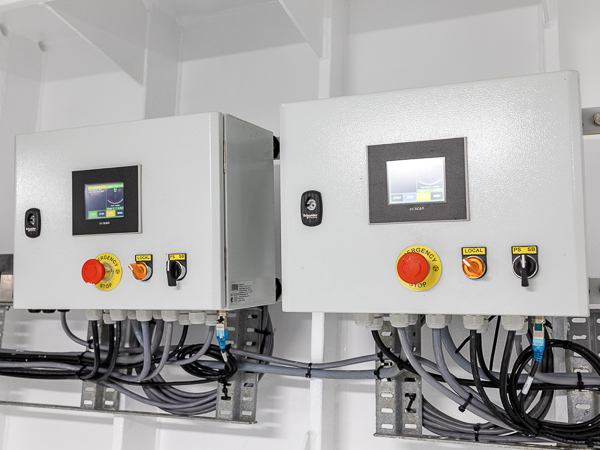

AS SCAN control cabinet with digital displays and emergency stop buttons mounted side by side. Used for monitoring and operating the hydraulic pumps and steering system modes.



About AS SCAN steering controls

Our steering control systems offers highly accurate, safe and flexible steering gear control systems. Our solutions can be configured according to any customer requirements. It is a unified control system allowing the operator to take control of the steering gear instantly at any control position on the bridge or to transfer control to the autopilot or FFU/NFU system.

You get one complete system with alarm system, pump control panel, NFU/FFU/Auto and rudder angle indicator.



Control Lever types

Follow-Up and Non Follow-Up configurations are available for the AS SCAN steering system. The different steering gear control system configurations are described as follows:



Non-Follow-Up (NFU)

A non-follow-up system actuates the  solenoid valves by controlling  the steering actuator. Upon a steering request the valve open completely, resulting in full force being applied to the rudder as long as input is given. Upon removal of the steering request the valve closes again. This makes it a time dependent control.



Steering control with joystick and indicator light.

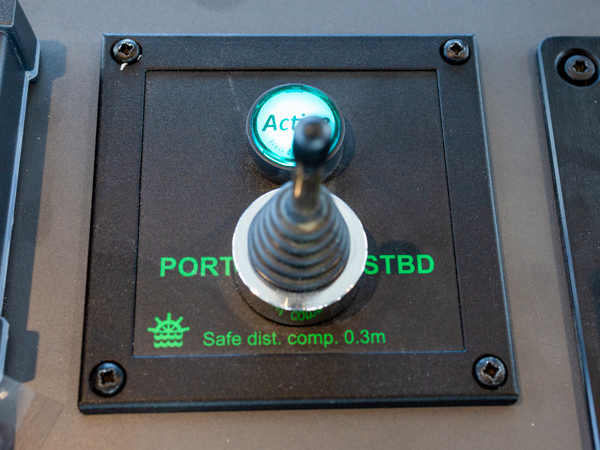

Control unit featuring a joystick for rudder operation. Equipped with indicator light and port/starboard markings, designed for quick maneuvering from the bridge.



Full Follow-Up (FFU)

A full follow-up system applies position feedback. The required rudder position is set on the steering control, upon which the solenoid valves are opened to control the steering actuator.
The actual position and requested position are continuously compared, resulting in automatic closure of the valves upon reaching the desired position. This makes it a position dependent control.



Instrument panel with rudder angle gauge and control indicators.

Control instruments at the steering console, including rudder angle gauge and system status indicator. Part of AS SCAN’s integrated steering control system for precise maneuvering.

Key features

  • Reduction of cables means low installation cost
  • One complete system
  • Easy commissioning
