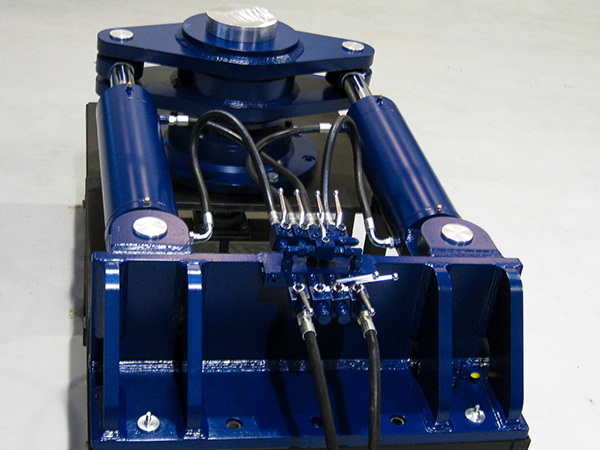

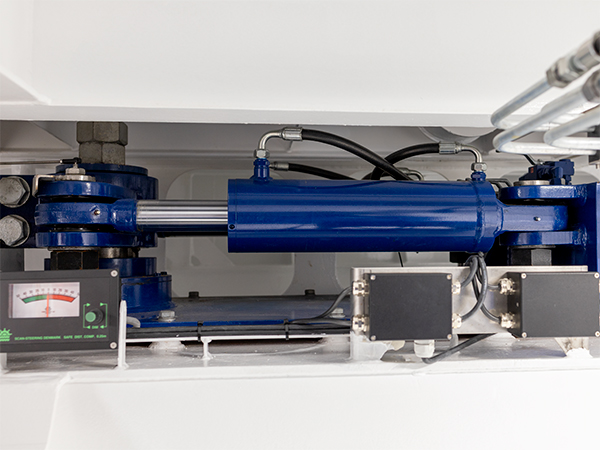

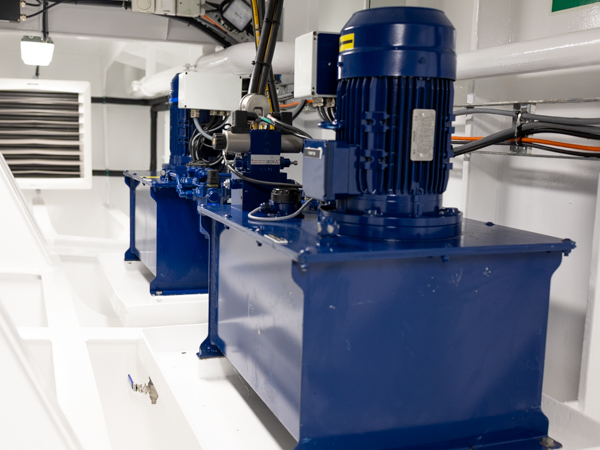

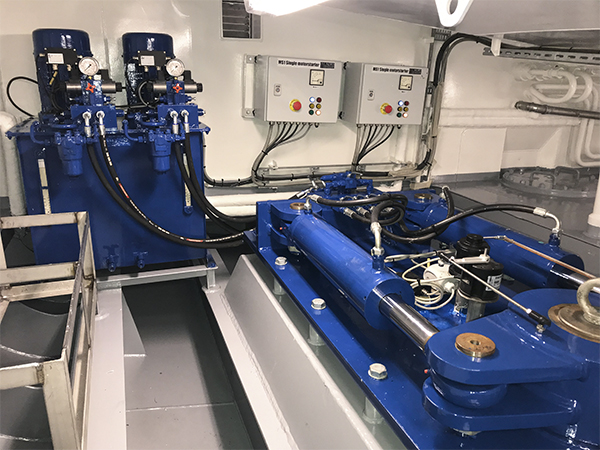

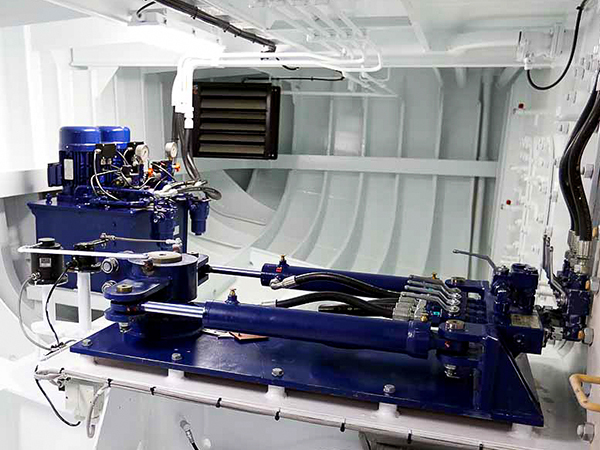

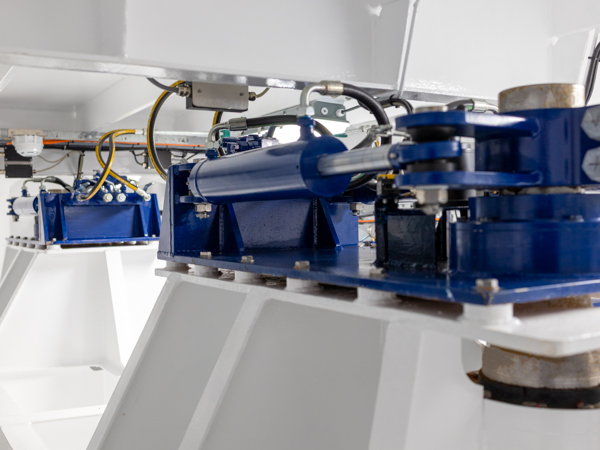

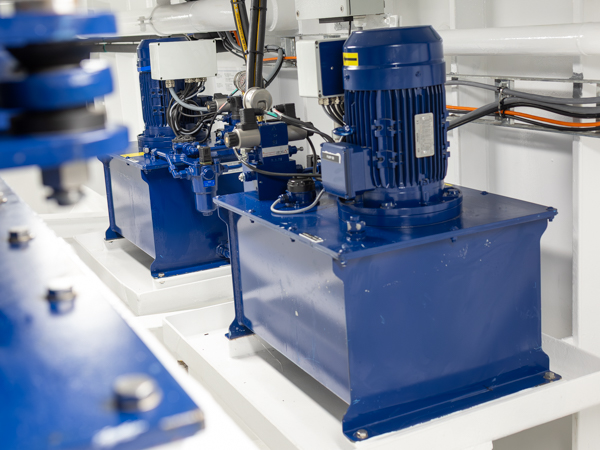

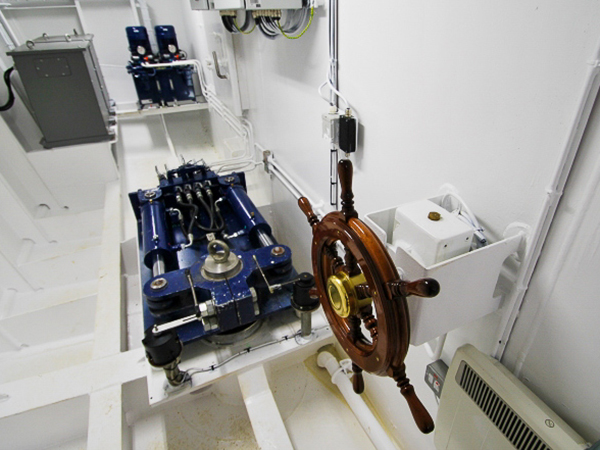

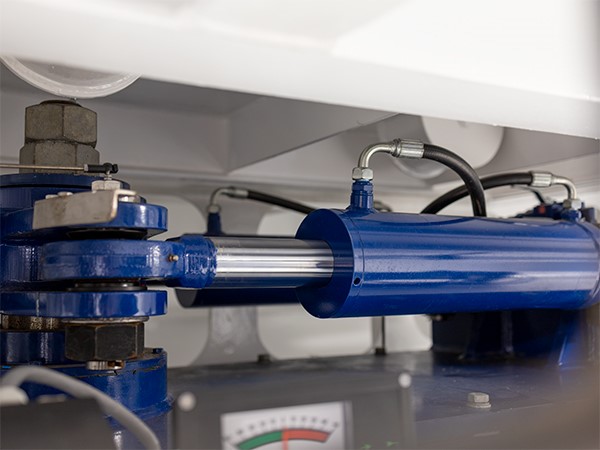

Hydraulic cylinders and linkage of the Scan Steering system installed on the towing and supply vessel Skawlink. The compact design ensures optimal use of space. Twin hydraulic power units supplying pressure to the steering gear system on the vessel Skawlink, ensuring reliable and precise rudder control. Hydraulic power units (HPU) installed in the steering gear compartment onboard the towing and supply vessel Skawlink. Painted in marine blue for corrosion protection. Hydraulic power unit and steering gear system installed in ship compartment Blue hydraulic cylinder from AS SCAN steering gear system AS SCAN ram-type steering gear system ready for installation Traditional steering wheel with integrated hydraulic steering gear system Twin-cylinder hydraulic steering gear installed in ship’s steering room

Steering gear for ships – Scan Steering

Scan Steering is our steering gear system for ships, built around an electro-hydraulic ram type steering gear. The steering gear has a low build height, so it fits in steering gear rooms with limited headroom. It also gives a large rudder angle – 45° as standard and up to ±60° – which vessels such as fishing vessels, workboats, luxury yachts and smaller ferries need. It can be mounted on the rudder stock in several ways, and we offer different cylinder solutions.



Skawlink newbuilding with Scan steering equipment

Skawlink, a 25.50-metre tug and supply vessel built by Hvide Sande Shipyard for Saga Shipping. Photo: Hvide Sande Shipyard



More than 1,500 steering gears delivered since 1962

We have made steering gear since 1962 and have delivered more than 1,500 Scan Steering units to ships around the world. If you want everything from one supplier, we can deliver the complete steering gear system: ram type steering gear, pump station, and control and alarm systems.



A steering gear system that can be adapted

Scan Steering works with both single and multiple rudders. Our engineers provide installation instructions and are happy to adapt the standard model to the ship. This makes installation simpler and cheaper, and saves space on board.

The system is built with redundancy, so the ship can keep steering if a fault occurs. All Scan Steering steering gears are approved by leading classification societies. They are built from standard components from well-known manufacturers, so you can get spare parts in the ship's home port and reduce the risk of long downtime.

We also service steering gear and keep a large stock of spare parts for all types.



Rudder carrier bearing built into the steering gear

The rudder carrier bearing carries the rudder, so the rudder stock turns easily. Inside is a double-row spherical roller bearing built into the bottom plate of the steering gear. This makes the bearing easy to install and align, and it needs very little maintenance.



Rudder carrier bearing next to housing

Rudder carrier bearing next to the integrated bearing housing.



Specifications for Scan Steering ram type steering gear

Here are the key figures for our standard steering gear. It can be adapted to each project.

  • Operation: electro-hydraulic
  • Cylinders: 2 differential cylinders
  • Torque: 3–950 kNm
  • Rudder angle: 45° as standard, up to ±60°
  • Pump station: independent (PU)
  • Mounting on the rudder stock: split hub, keyed taper, clamping rings, etc.
  • Vessels: single or twin screw
  • Twin rudders: electrical or mechanical synchronisation
  • Classification: meets all classification requirements



Complete steering gear system for the ship

We supply both standard and more advanced control systems for the steering gear. We also build single rudder and twin rudder solutions that fit the ship and the way it’s used.

Key features

  • Compact – fits in even tight steering gear rooms
  • Ram type steering gear – torque from 3 to 950 kNm
  • Easy to service – the steering gear system is built from standard components from well-known manufacturers
